✈️ Understanding PAPIs: How Precision Approach Path Indicators Guide Safe Landings


How do pilots instantly know whether they are too high or too low during a runway approach?


The answer is the PAPI – Precision Approach Path Indicator, a critical visual aid used at airports worldwide to help pilots maintain the correct glide path during landing.


A PAPI system consists of four light units installed beside the runway. Each unit emits red or white light depending on the aircraft’s approach angle. Pilots interpret the glide path based on the combination of these lights:

⚪ ⚪ ⚪ ⚪ — Too High

⚪ ⚪ ⚪ ⚫ — Slightly High

⚪ ⚪ ⚫ ⚫ — On Correct Approach Path

⚪ ⚫ ⚫ ⚫ — Slightly Low

⚫ ⚫ ⚫ ⚫ — Too Low

This intuitive red/white visual reference enables pilots to make instant adjustments, ensuring a stable and safe landing approach.

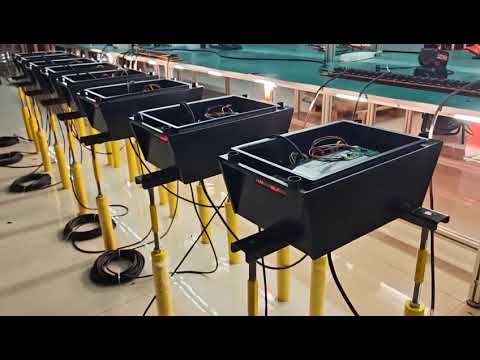

🎥 In this video, our engineers are testing the communication and fail-safe synchronization function of the LED PAPI system. For aviation safety, the light unit tilt sensing must be fail-safe so any malfunction, including loss of input power, de-energizes the PAPI light units.


💡 Key features of our LED PAPI system:

• High-intensity LED optics with clear red/white contrast

• Reliable communication and synchronization between units

• Integrated fail-safe protection for aviation safety

• Robust design for demanding airport environments


⚙️ Flexible power supply options:

• 6.6A series circuit for standard airport airfield lighting systems

• Solar-powered PAPI solutions for remote airstrips or special installations


We also provide customized aviation lighting solutions tailored for airports, airfields, and special aviation infrastructure projects.

🌐 Website: http://www.cdt-en.com/

📧 Email: sophia@chendongtech.com

📱 Phone/WhatsApp: +86-13929493960

#AviationLighting #PAPI #AirfieldLighting #AirportLighting #RunwayLighting #AviationSafety #AirportInfrastructure #SolarAviationLighting #AviationTechnology #AirportProjects #FlightSafety #AviationEngineering
